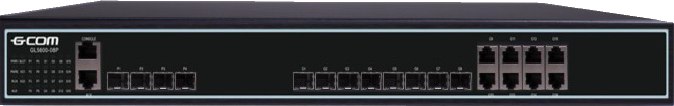

GCOM-OLT-GL5600-04P
Product Detail
Product Overview
- ·GL5600-04P 4-Port GPON OLT LAN Switch provides 4 downstream GPON ports, 8 uplink GE optical port and 8 GE RJ45 ports, with an expansion slot, which can access 2 10GE SFP+ ports.
- ·The 1U height can be easy installed and maintained to save space.
- ·The GL5600-04P adopts the industrial advanced technology, with powerful Ethernet services and QoS feature, supporting SLA and DBA. The splitting ratio up to 1:128, supporting different types of ONU in different networks, minimizing operators' investments.
Product Specification
Switching Capacity |
102Gbps |
Throughput (IPv4/IPv6) |
75.88MPPS |
Ports |
4 x PON SFP Slot 8 x Combo Gigabit Port(100/1000Base-X SFP or 100/1000Base-T) 1 x Dual 10G Module Slot |
Power Redundancy |
Dual power supply. Dual AC, Dual DC or AC+DC |
Power Supply |
AC : Input 100~240V, 47~63Hz DC : Input -36V~-75V |
Power Consumption |
≤85W |
Dimensions (mm) (W x D x H) |
440mm x 44mm x 380mm |
Weight (In Max Configuration) |
≤3kg |
Environmental Requirements |
Working Temperature : -15°C~55°C Storage Temperature : -40°C~70°C Relative Humidity : 10%~90%, Non Condensing |
