Product Overview

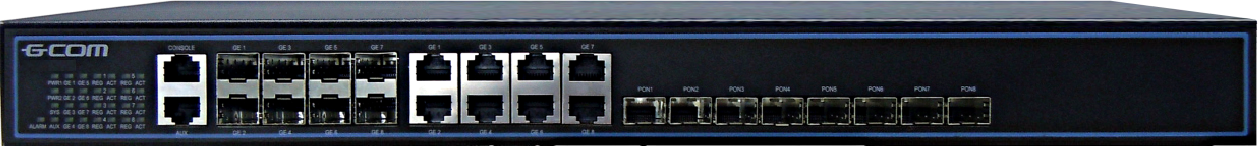

• ·GL5600-08P 8-Port GPON OLT LAN Switch provides 8 downstream GPON ports, 8 uplink GE optical port and 8 GE RJ45 , with an expansion slot, which can access 2 10GE SFP+ ports.
• ·The 1U height can be easy installed and maintained to save space.
• ·The GL5600-08P adopts the industrial advanced technology, with powerful Ethernet services and QoS feature, supporting SLA and DBA. The splitting ratio up to 1:128, supporting different typesof ONU in different networks, minimizing operators' investments.

Product Specification

Switching Capacity	102Gbps
Throughput (IPv4/IPv6)	75.88MPPS
Ports	8 x PON SFP Slot 8 x Combo Gigabit Port(100/1000Base-X SFP or 100/1000Base-T) 1 x Dual 10G Module Slot
Power Redundancy	Dual power supply. Dual AC, Dual DC or AC+DC
Power Supply	AC : Input 100~240V, 47~63Hz DC : Input -36V~-75V
Power Consumption	≤85W
Dimensions (mm) (W x D x H)	440mm x 44mm x 380mm
Weight (In Max Configuration)	≤3kg
Environmental Requirements	Working Temperature : -15°C~55°C Storage Temperature : -40°C~70°C Relative Humidity : 10%~90%, Non Condensing
