GCOM-ONU-GN2000-01G
Product Detail
Product Overview

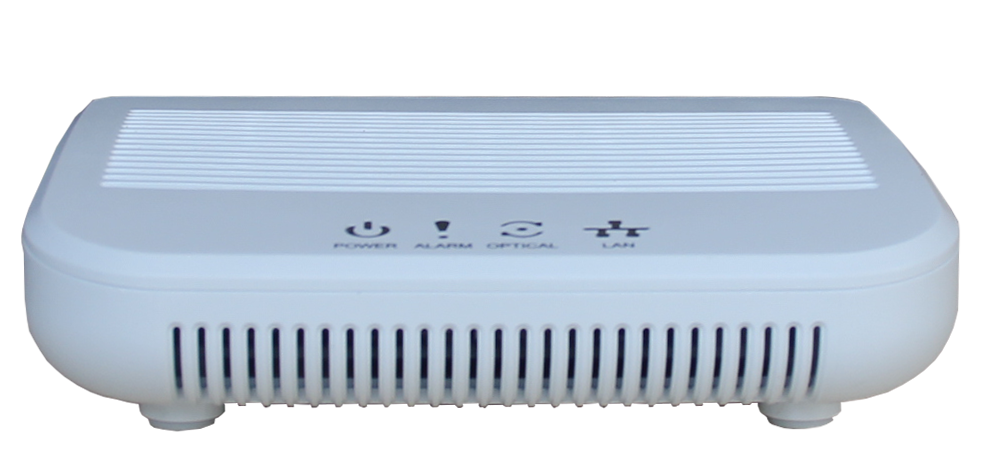

- ·GN2000-01G is designed for GPON ONU device with plastic shell by GCOM. GN2000-01G GPON ONU satisfies IEEE 802.3u standard and supports 1000M access to the user side.
- ·It is a low cost and high speed ONU access device installing in the indoor and corridor with the deployment of FTTH,FTTO,FTTB.
- ·GN2000-01G transmits data, voice and digital video by flexible PON network structure. It provides uplink speed rate of 1.25Gb/s, downlink speed rate of 2.5Gb/s to share high speed bandwidth for users.
Product Specification
Hardware Feature |
|
Fixed Port |
1 x 10/100/1000M Base-TX 1 x 1000M PON(SC) |
PON Feature |
Uplink Transmission Rate : 1.25Gbps Downlink Transmission Rate : 2.5Gbps Network Coverage Radius : 20km Optical Receiver : ≥-26dBm Luminous Power : >0dBm Security : ONU Authentication Mechanism |
Indicator |
Each Port : Link/Act Each Device : Power/LOS/ALARM |
Dimension |
110mm x 90mm x 26mm (W x D x H) |
Voltage |
External Power Adaptor 100-240VAC/50-60Hz Input,12VDC/1A Output |
Max Power Consumption |
10W |
Environment |
Working Temp : 15°C~50°C; Working humidity : 5%~90% Non Condensing |
Storage Temp : -40°C~70°C Storage Humidity : 5%~95% Non Condensing |
|
Software Feature |
|
Protocol |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ah, IEEE 802.3ad |
Configuration Management |
CLI, WEB, SNMP |
