GCOM-ONU-GN2000-04G
Product Detail
Product Overview

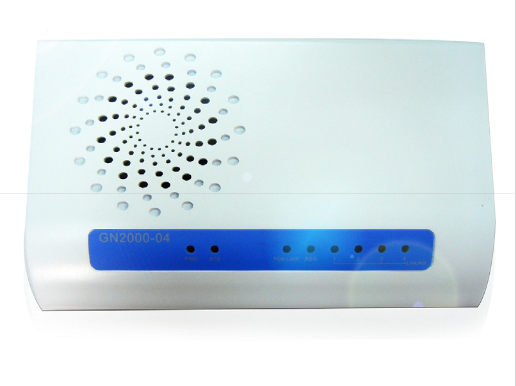

- ·GN2000-04G is designed for GPON ONU device with white plastic shell by GOM.
- ·GN2000-04G will target at the SOHO family with FTTH network structure.
- ·It deploys on the access layer of corridor, enterprise, university, bandwidth community etc with flexible GPON network.
Product Specification
Item |
GN2000-04G |
GN2000-04G-2V |
GN2000-04G-1W-2V |
|
Port |
1 x GPON Uplink Port 4 x 10/100/1000Base-TX |
1 x GPON Uplink Port 4 x 10/100/1000Base-TX 2 x VOIP |
1 x GPON Uplink Port 4 x 10/100/1000Base-TX 2 x VOIP, 1 x WLAN |
|
Processor |
MIPS 74Kc (500MHZ) |
|||
DDR3 |
Hynix : H5TQ1G63BFR (1Gbit) |
|||
NAND FLASH |
Samsung : K9F1G08U0B-PCB00(1Gbit) |
|||
Dimension |
268mm(L) x 213mm (W) x 34mm (H) |
|||
Weight |
<1.4kg |
|||
Voltage |
Power Adaptor (220AC Input-12VDC/2A Output) |
|||
Max Power Consumption |
<13W |
<15W |
<17W |
|
MAC Table |
1K |
|||
Buffer |
1 Mbit |
|||
Flow Control |
IEEE 802.3x Flow Control (Full Duplex); Back Pressure Flow Control (Half Duplex) |
|||
Environmental |
Working Temperature : 0°C~50°C; Relative Humidity : 5%~95%, Non Condensing |
|||
GPON Feature |
||||
● ITU-T G.984 GPON Standard ● GEM Encapsulation ● DBA (Dynamic Bandwidth Assignment) ● 40 T-CONT and 256 x GEM Port ● Class B+ Optical Power Budget ● Mapping from Port-based VLAN to GEM port ● FEC (Forward Error Correction) ● OAM (Operations, Administration and Maintenance) ● PLOAM (Physical Layer OAM) ● OMCI ● Downlink 128 bit AES (Advanced Encryption Standard) Encryption ● Power-Down Alarm |
||||
Business Function |
||||
VLAN |
Port-based VLAN and IEEE 802.1Q VLAN ● VID and PVID Configure Tag Attribution based on Port + VLAN |
|||
Broadcast Storm Suppression |
Configure Quantity of Broadcast Packet |
|||
STP |
IEEE 802.1d/1s/1w |
|||
Port Aggregation |
Support |
|||
Bandwidth Control |
Support 64K to100M |
|||
Mirror |
Port Mirroring |
|||
QoS |
Port-based ● 802.1p ● IP-TOS Priority ● 4 Priorities Control |
|||
Upgrade |
Xmodem ● TFTP |
|||
Management |
GN.Link Cluster Management and Remote Upgrade (Client end) Telnet Remote Configuration ● SNMP ● WEB |
|||
Security |
The administrator's user password authentication Port binding, limit MAC address on each port ● 802.1x |
|||
Maintenance |
Debug Information Output ● PING ● System Log |
|||
