·S2600 POE Series Ethernet Switches are new generation carrier access Ethernet POE devices. These series not only provide high bandwidth transmitting, but also provide remote power supply based on IP terminal devices.
·S2600 POE Series Switches comply IEEE standard of 802.3af and 802.3at.
·The maximum power consumption of each port is 32W, the full power consumption can reach 400W.

S2600-09PC	·8 x 10/100Base-T with POE power supply ·1 x Combo GE+ (100/1000M Base-X SFP or 100/1000M Base-T) ·10K Jumbo, 16K MAC address, 4K VLAN, Q-in-Q ·460 ACL with controlling depth of L4 ·Full-loaded power-consumption is lower than 14W (without POE supply) ·POE supply comply 802.3af and 802.3at ·Max power consumption supply of single port is 40 W
S2600- 2 0PC	·16 x 10/100Base-T with POE power supply ·2 x Combo GE+ (100/1000M Base-X SFP or 100/1000M Base-T) ·2 x 100/1000Base-X SFP ·10K Jumbo,16K MAC address,4K VLAN, Q-in-Q ·460 ACL with controlling depth of L4 ·Full-loaded power-consumption is lower than 15W(without POE supply) ·POE supply satisfy 802.3af and 802.3at ·Max power consumption supply of single port is 32W
S2600- 28PC	·24 x 10/100Base-T with POE power supply ·2 x Combo GE+ (100/1000M Base-X SFP or 100/1000M Base-T) ·2 x 1000Base-X SFP ·10K Jumbo, 16K MAC address, 4K VLAN, Q-in-Q ·460 ACL with controlling depth of L4 ·Full-loaded power-consumption is lower than 37W (without POE supply) ·POE supply satisfy 802.3af and 802.3at ·Max power consumption supply of single port is 32W
PSE-V01	·1 x 10/100Base-T FE (WAN, uplink connect) ·1 x 10/100Base-T FE (LAN, down link connect) ·1 x 220V Input Power Supply Interface ·Support IEEE 802.3af standard, Provide power to standard PD device ·Max power consumption supply of single port is 25W

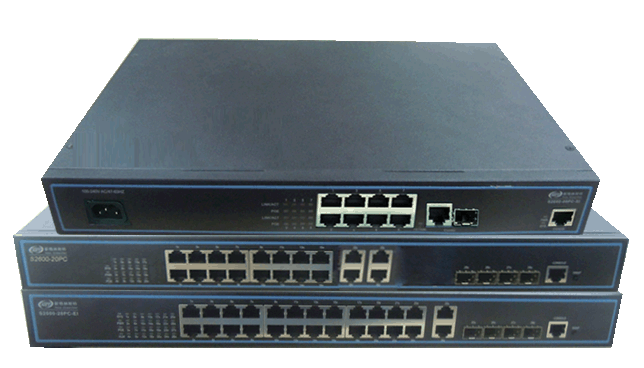

S2600 Managed Layer 2 PoE Switch Series
