S2610 series Fast Ethernet Energy-Saving Switch

Product Overview

Product Overview

  • ·S2610 series switch adopts IEEE 802.3az standard with the low-cost application of Ethernet Base-T receiver (100Mb, 1GbE and 10GbE) and low-power idle application by backplane physical layer. When the device is being in the period of low utilization or idle, disconnect the power connection, recover power connection and detect the length of table during the data transmission to reduce the power consumption.
  • ·This series switch takes new technology of RTCT, UDLD, Attack Prevention and limit MAC address. It obeys the rules of Restriction of Hazardous Substances and Waste Electrical and Electronic Equipment., also plays a positive role in promoting the energy-saving products

Product Highlight

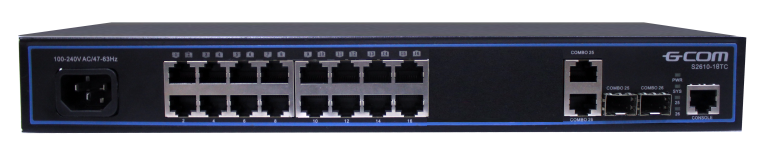

S2610-18TC
  • ·16 X 10/100Base-T RJ-45
  • ·2 X ComboGE (100/1000Base-X SFP or 100/1000Base-T)
  • ·16K MAC address
  • ·512 ACL
  • ·4K VLAN，selective Q-in-Q
  • ·STP/RSTP/MSTP
  • ·AC220V and DC
  • ·Stackable

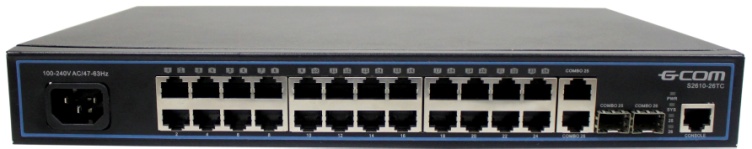

S2610-26TC
  • ·24 X 10/100Base-T RJ-45
  • ·2 X ComboGE (100/1000Base-X SFP or 100/1000Base-T)
  • ·16K MAC address
  • ·512 ACL
  • ·4K VLAN，selective Q-in-Q
  • ·STP/RSTP/MSTP
  • ·AC220V and DC
  • ·Stackable

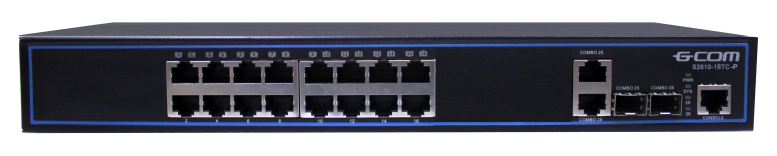

S2610-18PC
  • ·16 X 10/100Base-T RJ‐45 w/PoE
  • ·2 X ComboGE (100/1000Base-X SFP or 100/1000Base-T)
  • ·16K MAC address
  • ·512 ACL
  • ·4K VLAN，selective Q-in-Q
  • ·STP/RSTP/MSTP
  • ·Support IEEE 802.3af & 802.3at standard of POE
  • ·Stackable

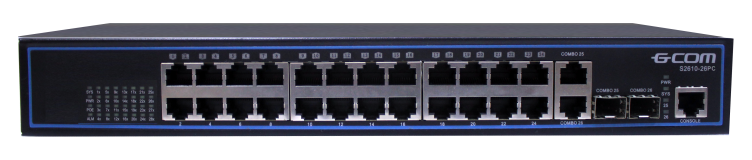

S2610-26PC
  • ·24 X 10/100Base-T RJ-45 w/POE
  • ·2 X ComboGE(100/1000Base-X SFP or 100/1000Base-T)
  • ·16K MAC address
  • ·512 ACL
  • ·4K VLAN，selective Q-in-Q
  • ·STP/RSTP/MSTP
  • ·Support IEEE 802.3af & 802.3at standard of POE
  • ·Stackable

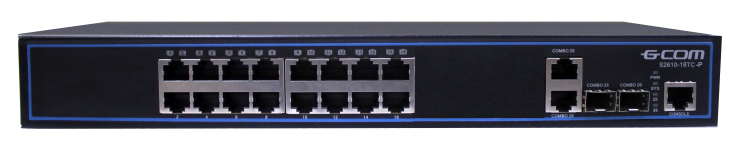

S2610-18TC-P
  • ·16 X 10/100Base-T RJ-45
  • ·2 X ComboGE (100/1000Base-X SFP or 100/1000Base-T)
  • ·16K MAC address
  • ·512 ACL
  • ·4K VLAN，selective Q-in-Q
  • ·Port 2-16 support user side to provide power
  • ·Port 1 provides upward -48V DC power
  • ·Stackable
  • ·Rack-Mountable

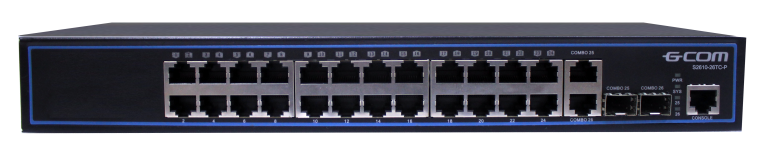

S2610-26TC-P
  • ·24 X 10/100Base-T RJ-45
  • ·2 X ComboGE (100/1000Base-X SFP or 100/1000Base-T)
  • ·16K MAC address
  • ·512 ACL
  • ·4K VLAN，selective Q-in-Q
  • ·Port 2-24 support user side to provide power
  • ·Port 1 provides upward -48V DC power
  • ·Stackable
  • ·Rack-Mountable
